SMC Roving
E glass SMC roving,Fiberglass SMC Roving CYS-E326
Product Name: SMC Roving
ProductNo: CYS-E326
ProductModel: 2400TEX,4800TEX
Unit：T
Tag：SMC roving E glass assembled roving for SMC SMC440SMC442SMC410SMC458ASMC440A456443EW511C-2400AEW511C-2400CYS-2400-H510EW430MEW436EW430SMC13-2400-H510 Стеклоровинг для Технологии SMC
Click：6392

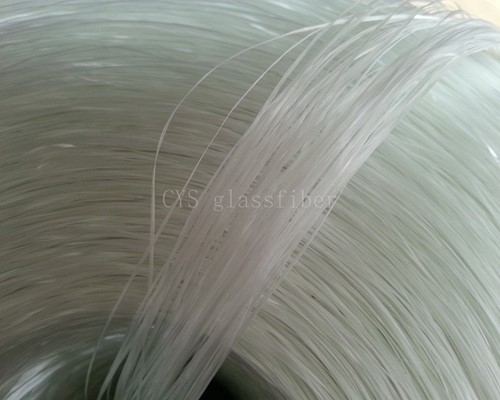

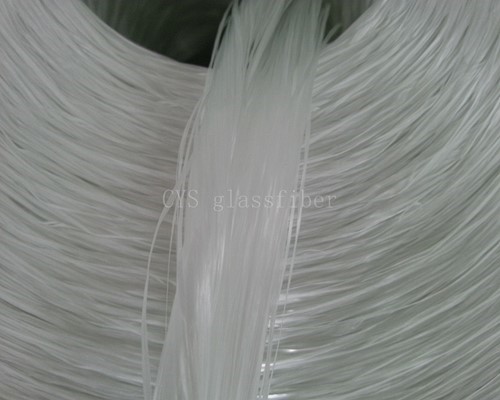

E Glass SMC Roving
E glass SMC roving (Стеклоровинг для Технологии SMC) CYS-E326 is coated with a high performance compound sizing compatible with unsaturated polyester resin, vinylester resin and so on.
It is mainly used to produce automotive parts, doors, chairs, bathtubs, SMC water tanks and sports instruments etc.
Type of glass | E |
Filament diameter (um) | 13 |
Linear density (Tex) | 2400, 4800 |
Product Feature
1. Good choppability and good gathering.
2. Good dispersion and lay down.
3. Low static, excellent mechanical properties.
4. Excellent mold flowability & wet out.
Technical Parameters
Linear density | Filament diameter | Moisture content | LOI |
±5% | 13±1um | ≤0.10 | 1.20±0.15 |

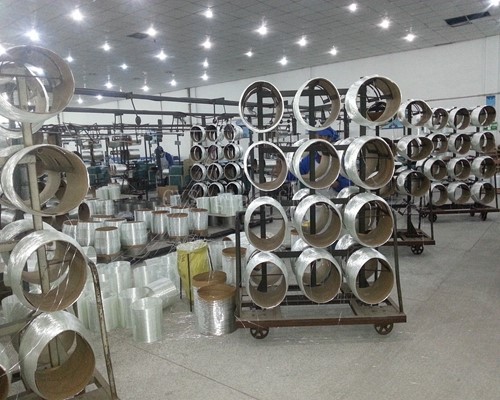

Packing
The product can be packed on pallet in both small & big size pallet.
Bobbin height (mm) | 260 | |
Bobbin inside diameter (mm) | 80 | |
Bobbin outside diameter (mm) | 270 | |
Bobbin weight (kg ) | 18-20 | |
Number of layers | 3 | 4 |
Number of rolls per layer | 16 | |
Number of rolls per pallet | 48 | 64 |
Net weight per pallet (kg) | 864-960 | 1152-1280 |
Pallet length (mm) | 1140 | 1140 |
Pallet width (mm) | 1140 | 1140 |
Pallet height (mm) | 955 | 1220 |
Storage
Fiberglass roving should be stored in its original packing in a dry and cool place. Best conditions are at temperatures from 15 to 35℃ and humidity between 35 to 65%. To ensure safety and avoid damage to the product, the pallets should not be stacked more than three layers high, when the pallets are stacked in 2 or 3 layer, care should be taken to correctly and smoothly move the top pallet.
