Fiberglass chopping Roving
E glass roving for chopping is mainly used in FRP pipes molding, also called chopped roving.
Product Name: Fiberglass chopping Roving
ProductNo: CYS-E321CH
ProductModel: 2400
Unit：T
Tag：e glass assembled roving for chopping roving for chopping chopped rovingfiberglass roving622
Click：4238

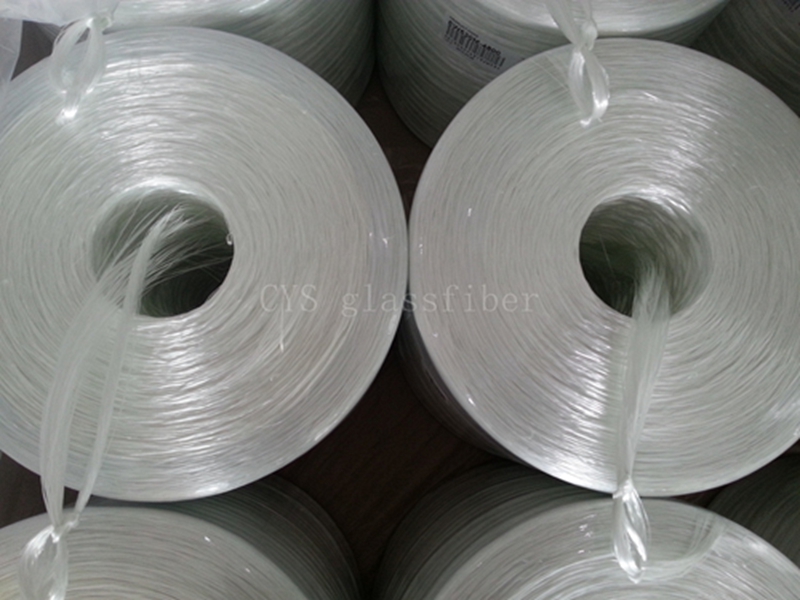

E Glass Roving for Chopping
E glass roving for chopping is compatible with unsaturated Polyester, Vinyl ester resins etc. E glass roving for chopping is mainly used in FRP pipes molding.
Type of glass | E |
Filament diameter (um) | 12 |
Linear density (Tex) | 2400, 4800 |
Product Feature
1. Easy chopping and good gathering.
2. Excellent dispersion.
3. Good anti-static properties.
4. Moderate wet-out in resin, good compatibility with resin.
Technical Parameters
Linear density | Filament diameter | Moisture content | LOI |
±5% | 13±1um | ≤0.10 | 1.10±0.15 |
Packing
The product can be packed on pallet in both small & big size pallet.
Bobbin height (mm) | 260 | |
Bobbin inside diameter (mm) | 80 | |
Bobbin outside diameter (mm) | 270 | |
Bobbin weight (kg ) | 18-20 | |
Number of layers | 3 | 4 |
Number of rolls per layer | 16 | |
Number of rolls per pallet | 48 | 64 |
Net weight per pallet (kg) | 864-960 | 1152-1280 |
Pallet length (mm) | 1140 | 1140 |
Pallet width (mm) | 1140 | 1140 |
Pallet height (mm) | 955 | 1220 |
Storage
Fiberglass roving should be stored in its original packing in a dry and cool place. Best conditions are at temperatures from 15 to 35℃ and humidity between 35 to 65%. To ensure safety and avoid damage to the product, the pallets should not be stacked more than three layers high, when the pallets are stacked in 2 or 3 layer, care should be taken to correctly and smoothly move the top pallet.
